Brooks Instrument GF100 Series 8000 SCCM DeviceNet Thermal Mass Flow Controller
About this part
Brooks GF100C-861729 is a metal-sealed, high-purity GF100 Series thermal mass flow controller. Its Brooks conformance and calibration label identifies an 8000 SCCM full-scale configuration for 50% dichloromethylsilane in hydrogen (50% CH3SiHCl2/H2), an SH48 MultiFlo bin, a normally closed valve, 1000 ms response, 2% full-scale overshoot, and reference conditions of 0°C and 760 Torr. Exterior controls and the five-pin Micro M12 connector establish DeviceNet communication. GF100C-861729 is a Brooks part number rather than the complete configurable product-description code, so the fitting and other unlisted build options require the full PDC or manufacturer configuration record
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
Specifications
| Manufacturer | Brooks Instrument |
| Brooks part number | GF100C-861729 |
| Model number | GF100C |
| Series | GF100 Series |
| Serial number | B1053023431 |
| Model-code meaning | GF100 identifies the standard-performance, non-PTI GF100 platform; C identifies a MultiFlo-capable configuration |
| Process gas | 50% CH3SiHCl2/H2 (50% dichloromethylsilane/hydrogen) |
| Full-scale flow range | 8000 SCCM |
| MultiFlo bin | SH48 |
| Valve configuration | Normally closed |
| Response setting | 1000.00 ms |
| Overshoot | 2% of full scale |
| Reference conditions | 0°C and 760 Torr |
| Nitrogen test pressure | 35 psig |
| Calibration-gas accuracy shown on label | 1% of setpoint |
| Calibration timestamp | 2011-02-01 1:34:33 PM |
| Device version shown on label | 1.14 |
| Digital communication | DeviceNet |
| Network connector | Five-pin Micro M12 |
| Customer special request code | 0924 |
Process range and SH48 bin interpretation
The 8000 SCCM value is the configured full-scale flow for the stated process-gas mixture. SH48 is the controller's nitrogen-equivalent MultiFlo calibration bin; the current GF100 manual assigns SH48 to 15,001–30,000 SCCM N2 equivalent. The approximately 30,000 SCCM nitrogen calibration values on the unit label therefore do not conflict with its 8000 SCCM process-gas range.

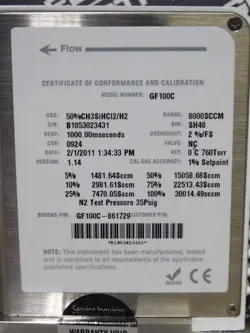

Calibration-label test points
The Brooks label records six nitrogen calibration points at a 35 psig test pressure.
| Calibration point | N2 flow shown |
|---|---|
| 5% | 1481.64 SCCM |
| 10% | 2981.61 SCCM |
| 25% | 7470.05 SCCM |
| 50% | 15058.68 SCCM |
| 75% | 22513.43 SCCM |
| 100% | 30014.49 SCCM |
DeviceNet CSR 0924 mapping
The exact unit label carries CSR 0924. Brooks' MultiFlo guide maps this common DeviceNet configuration as follows.
Configuration boundary
The short Brooks part number and visible label do not expose every position in the complete configurable product-description code.
- The exact fitting code and seal geometry are not established by the readable label.
- Downstream condition and sensor-orientation codes are not established.
- Auto-shutoff and auto-zero options are not established.
- GF125 pressure-transient-insensitivity specifications do not apply to this GF100 model.
