Brooks Instrument MT3809G Metal Tube Variable Area Flowmeter
About this part
3809G is a Brooks Instrument metal tube variable-area flowmeter identifier observed in Sonisys auction history and exact listing records records. Exact configured-code examples include 3809GAD10DACB1A00000 and 3809GHD07BBBB1A00000. Brooks MT3809/MT3809G family documentation supplies the technical baseline, while final connection, pressure, temperature, electronics, scale, and material details should be confirmed from the specific unit label
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
ManufacturerBrooks Instrument
Part number3809G
Product familyMT3809 Series
Device typeFlowmeter
Configuration statusConfiguration varies
Application classIndustrial automation and process equipment
CategoryFlow Control
Specifications
Identification
| Device type | Metal tube variable area flowmeter |
| Series family | MT3809 / MT3809G metal tube variable area flowmeter family |
| Observed configured codes | 3809GAD10DACB1A00000 and 3809GHD07BBBB1A00000 are observed in stored or exact listing records titles |
Flow
| Measuring principle | Variable area metal tube flow measurement |
| Media | Gas and liquid on the current Brooks variable-area overview; older Brooks data sheets also describe gas, liquid, and steam applications depending on configuration |
| Flow range example | Brooks variable-area overview lists water flow range up to 440 gpm / 100,000 l/h for MT3809 |
Accuracy
| Accuracy range | +/-2% full scale / Class 2.5 VDI / VDE range on the Brooks variable-area overview |
| Repeatability | 0.25% for all options except ELF on the Brooks variable-area overview |
Ratings
| Operating temperature | -198 to 420 C series-level operating temperature range on the Brooks variable-area overview; one stored listing title records -50C to 75C for a specific listed unit |
| Ingress protection | IP66, IP67, NEMA 4x, and IP65 ratings are listed for MT3809 on the Brooks variable-area overview |
Materials
| Primary meter materials | 316/316L stainless steel primary meter construction is available, with PTFE liner and other corrosion-resistant material options depending on configuration |
Electronics
| Optional electronics | Microprocessor transmitter, transmitter/alarm/pulse-output, inductive alarms, and transmitter with inductive alarms are documented options |
| Smart Meter Manager transmitter | Optional Brooks Smart Meter Manager transmitter supports HART-programmable variables including flow rate, totalization, calibration factors, and high/low alarm parameters |
| Foundation Fieldbus option | MT3809G/MT3810G documentation includes Foundation Fieldbus transmitter wiring and setup sections for configured units |
Installation
| Startup caution | After proper installation, initiate flow by slowly opening the valve to avoid a flow surge |
Maintenance
| Routine maintenance | The MT3809G/MT3810G manual states there is no routine maintenance required, while component replacement, adjustment, or removal requires specific procedures |
Observed Listing Context
| Connection and pressure example | One exact external listing for 3809G describes an armored variable-area flow meter with 1/4 inch stainless steel tube NPT context and 150 PSI maximum pressure |
Applications
| Application domain | Industrial gas, liquid, and steam process flow measurement depending on configuration |
Configuration
| Configured-unit rule | Flow range, process connection, transmitter, alarm, material, pressure, and temperature ratings vary by configured model code |
Documentation Downloads

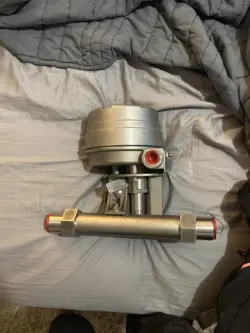

Local PDF copiesPart Photos
7 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offerArchive records6Tracked historical listing records
Historical median price$99.99Based on archived listing records
Recorded price range$75.00 - $1,000.00Low to high recorded listing price
Local documents3PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $87.00 to $699.97. Based on 6 archived listing records; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
- 3809G Brooks Instrument Flow Meter Variable Area RotameterA
- Brooks Instruments 3809GHD07BBBB1A00000 1Metal Tube Variable Area Flowmeter 3809
- Brooks Instrumentation 3809G Armored Variable Flow 3809 series
- Brooks Flow Meter 3809G Brand New And Calibrated
- Brooks 3809G Metal Tube Variable Area Flow Meter -50C to 75C
Archived listings
Other Part Numbers & Aliases
3809GBrooks 3809GBrooks Instrument 3809GBrooks Instrumentation 3809G3809G Flow Meter3809G Rotameter3809G Variable Area Flowmeter3809G Metal Tube Flow Meter3809GAD10DACB1A00000Brooks 3809GAD10DACB1A000003809GHD07BBBB1A00000Brooks 3809GHD07BBBB1A00000
