Granville-Phillips 275563 Series 275 Mini-Convectron DeviceNet Instruction Manual
About this part
275563 is the manufacturer document number for the Series 275 Mini-Convectron Vacuum Gauge Module with DeviceNet digital interface instruction manual. Revision J covers catalog numbers 275538 and 275553, including installation, calibration, pressure measurement, DeviceNet operation, process-control relays, troubleshooting, and gauge-tube service
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
Specifications
| Manufacturer document number | 275563 |
| Document type | Instruction manual |
| Official revision | Revision J — January 2020 |
| Covered series | Series 275 Mini-Convectron Vacuum Gauge Module with DeviceNet digital interface |
| Covered catalog numbers | 275538 with 3-digit display; 275553 without digital display |
| Measurement range for air or nitrogen | 1 × 10^-4 to 1000 Torr; 1 × 10^-4 to 1300 mbar; 1 × 10^-2 Pa to 130 kPa |
| Resolution | 1 × 10^-4 Torr; 1 × 10^-4 mbar; 1 × 10^-2 Pa |
| Power requirement | +11.5 to 26.5 VDC; 5.5 W maximum |
| Digital interface | DeviceNet; switch-selectable 125, 250, or 500 kbaud |
| Process-control relays | Two single-pole, double-throw relays with programmable trip point, activation direction, and hysteresis |
| Connectors | 5-pin Micro and 9-pin D male |
| Operating temperature | 0°C to +40°C, non-condensing |
| Non-operating temperature | −40°C to +70°C |
| Protection and compliance | IP20; CE |
| Enclosure dimensions | 4.5 × 1.7 × 2.5 inches, excluding gauge port and fitting |
| Weight | 340 g (12 oz) with 1/8-inch NPT fitting |
| Gauge-tube internal volume | 40 cc (2.5 cubic inches) |
| Sensor options | Gold-plated tungsten or platinum |
| Installation orientation | Horizontal preferred |
| Gauge-tube service | Field-replaceable |
Document Applicability
275563 is an instruction-manual number, not a configured vacuum-gauge model number. Revision J is expressly limited to DeviceNet modules 275538 and 275553 and must not be treated as universal documentation for every Series 275 variant.
Covered 275538/275553 Model-Code Structure
The manual defines variable sensor, fitting, and measurement-unit positions for its two covered base models.
| Segment | Field | Interpretation |
|---|---|---|
| 275538 | Base module | DeviceNet module with two digital setpoints and a 3-digit display |
| 275553 | Base module | DeviceNet module with two digital setpoints and no digital display |
| First variable | Sensor | G = gold-plated tungsten; P = platinum |
| Second variable | Flange or fitting | P = 1/8 NPT and 1/2-inch tubulation; Q = 1/4-inch female VCR type; R = 1/2-inch female VCR type; D = NW16KF; E = NW25KF; K = NW40KF; F = 1.33-inch NW16CF; G = 2.75-inch NW35CF |
| Final variable | Measurement units | T = Torr; M = mbar; P = pascal |
Application and Safety Notes
- The covered gauges are factory-calibrated for nitrogen. Measurements and relay setpoints for other gases require the Granville-Phillips conversion data supplied in the manual.
- Do not use the module to measure flammable or explosive gases.
- Proper grounding of the module and vacuum system is required.
- The electronics-attached non-operating bakeout limit is 85°C. With the electronics removed, the gauge-tube bakeout limit is 150°C.
- Operation between 1 × 10^-4 and 1 × 10^-3 Torr requires periodic zero verification below 1 × 10^-5 Torr.
Documentation Downloads
Local PDF copiesPart Photos

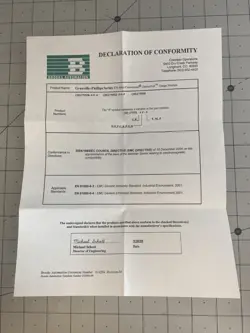

5 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
