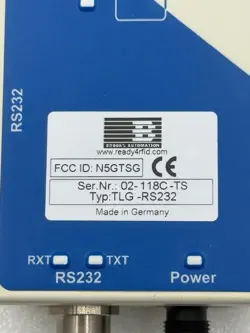

TLG-I2-FL6M-01 is a Brooks Automation / Hermos-line TLG-RS232 transponder reader identifier used in semiconductor automation RFID and carrier-identification applications. Stored Sonisys auction titles repeatedly identify this exact part as a Brooks TLG-RS232 transponder or RFID reader with ASC-I1, LF80 RS232, FCC ID N5GTSG, and 013500-552-28 / ELEC-I-552=7C33 context. The FCC N5GTSG record and Brooks Automation user-manual exhibit document the wider TLG-RS232 inductive tag system, RS232 interface, low-frequency operation, antenna options, and SECS-I / SECS-II protocol context
Configurations vary. Verify the exact unit before choosing a replacement.
Application classSemiconductor/high-purity gas delivery
CategoryRFID Readers
Specifications
Identification
Part identifier
TLG-I2-FL6M-01
Device type
RS232 transponder reader / industrial RFID reader
Brand lineage
Brooks Automation / Hermos RFID line
Observed reader type
Stored titles identify this exact part with TLG-RS232, ASC-I1, LF80 RS232, and transponder reader wording
Regulatory
FCC ID context
Auction titles and FCC records associate the TLG-RS232 family with FCC ID N5GTSG
FCC equipment description
Inductive TAG System
RFID
Operating frequency context
FCC records list 0.134 MHz and 0.1342 MHz filings for N5GTSG low-power inductive tag equipment
Transponder type
Brooks RS232 manual describes passive battery-less transponders charged by the reader antenna field
Reading cycle
Brooks RS232 manual describes a total reading cycle of less than 100 ms
Line-of-sight requirement
Brooks RS232 manual states line of sight is not required and transponders can be identified through non-metallic material
Antenna options
Brooks RS232 manual documents rod, mini, micro, and frame antenna sections; auction evidence for this exact part also shows antenna-set listings
Interface
Host interface
RS232 serial interface
Connector
Brooks RS232 manual documents a 9-contact Sub-D female RS232 connector for the reader hardware
Baud rate range
300 Bd to 115.2 kBd
Protocol
Documented protocol context
Brooks RS232 manual documents SEMI SECS-I / SECS-II message handling for the RS232 transponder reader
Material-status messages
Manual message examples include cassette found, cassette lost, read MID, write MID, lock MID, and ID read/write functions
Hardware
Indicators and controls
Power LED, read LED, tuning LEDs, reset button, tuning pushbutton, and service programming port are documented hardware features
External I/O
External output and external input are documented; the input can be used with a sensor such as an optical sensor
Configuration
Configured-unit boundary
Antenna package, reader firmware, cable set, OEM part number, enclosure label, and installed tool protocol should be verified from the physical unit and semiconductor-tool documentation
