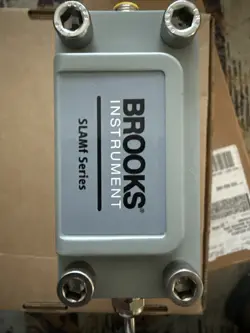

Brooks Instrument SLAMF50 Digital Mass Flow Controller
About this part
SLAMF50D1MBC1A2A1 is a configured Brooks Instrument SLAMF50 digital thermal mass flow controller in the SLAMF Series. Official Brooks SLAMF documentation identifies SLAMF50 as the body-size 0 mass-flow-controller platform in the elastomer-sealed SLAMF controller and meter family. The suffix indicates a configured unit with DeviceNet digital communications, 3/8 inch to 1/2 inch VCO process connections, Buna elastomer selections, a normally closed valve, 24 Vdc power, standard response, and safe-area certification; exact gas and calibrated full-scale range still require nameplate or calibration-record verification
Configurations vary. Verify the exact unit before choosing a replacement.
Application classLife sciences and laboratory automation
CategoryFlow Control
Specifications
Identification
Part identifier
SLAMF50D1MBC1A2A1
Device type
Elastomer-sealed digital thermal mass flow controller
Series family
Brooks SLAMF Series elastomer-sealed digital gas mass flow controllers and meters
Decoded base model
SLAMF50, the body-size 0 SLAMF Series mass-flow-controller model; Brooks pairs SLAMF50 with SLAMF60 as the corresponding meter model
Flow
SLAMF50 family range context
Official SLAMF documentation lists SLAMF50/SLAMF60 full-scale flow ranges from 0.003 slpm to 50 slpm N2 equivalent; the exact configured gas and range for this unit must be read from the unit label or calibration record
Controls
Digital I/O communication code
D = DeviceNet I/O with 5-pin micro connector
Connections
Mechanical connection code
1M = 3/8 inch to 1/2 inch VCO
Materials
Elastomer and valve-seat codes
B = Buna O-ring material; C = Buna valve seat
Valve
Valve type code
1 = normally closed valve
Electrical
Interface and power codes
A = no analog I/O, digital communications only; 2 = 24 Vdc power input
Configuration
Output enhancement and certification codes
A = standard response; 1 = safe-area certification
Performance
Series accuracy context
Official SLAMF documentation lists standard SLAMF50/60 flow accuracy as +/-0.9% of setpoint from 20% to 100% full scale plus +/-0.18% full scale below 20% full scale, with 17025-certified accuracy options also documented
Repeatability and response
Official SLAMF documentation lists repeatability and reproducibility as 0.20% of setpoint and response time under 1 second for SLAMF50/60 class devices
Ratings
Enclosure and pressure context
The SLAMF Series is documented for IP66 and hazardous-area availability; SLAMF50/60 standard maximum operating pressure is listed as 1500 psi / 103 bar, with configuration-specific limits and optional higher-pressure context
Applications
Application domain
Gas flow measurement and control for chemical, petrochemical, laboratory, analytical, fuel-cell, biotechnology, life-science, production, washdown, hazardous-area, and process gas handling applications
Observed variants
Stored auction gas/range combinations
No reliable gas or full-scale range was extracted from stored exact-part auction titles
