CTI-Cryogenics P/N 8116021G002R is an observed configured identifier for the flat On-Board 8F cryopump. The On-Board platform combines cryogenic pumping hardware with valves, sensors, heaters, microprocessor control, diagnostics, regeneration control, and remote communications. Published On-Board 8F performance is 4,000 L/s for water, 1,500 L/s for air, 2,200 L/s for hydrogen, and 1,200 L/s for argon. Replacement selection requires the complete P/N and applicable interface drawing because multiple 8F configurations and related variants exist
Configurations vary. Verify the exact unit before choosing a replacement.
200 mm nominal; Metal Seal, ANSI, and ISO configurations were offered
Rough-pump connection
NW 25 ISO KF
On-Board 8F family — performance
Water pumping speed
4,000 L/s
Air pumping speed
1,500 L/s
Hydrogen pumping speed
2,200 L/s
Argon pumping speed
1,200 L/s
Argon throughput
700 sccm (9 Torr-L/s)
Crossover
150 Torr-L
On-Board 8F family — capacity
Argon capacity
1,000 standard liters
Hydrogen capacity
12 standard liters at 5 × 10^-6 Torr
On-Board 8F family — regeneration
Full regeneration
Less than 162 minutes typical; the current product page lists 2.5 hours nominal cold-to-cold for both stages
Fast/second-stage regeneration
Less than 60 minutes typical
On-Board 8F family — controls
Integrated hardware
Roughing valve, purge valve, cryopump TC gauge, first- and second-stage diodes, first- and second-stage heaters, two setpoint relays, and RS-232 interface; keypad/display optional
Control architecture
Embedded microprocessor control with diagnostics, Fast Regen capability, remote communication, and network-coordinated multi-pump regeneration
On-Board 8F family — physical
Weight
52 lb (24 kg)
On-Board family — operating principle
Documented vacuum range
Pumps gases in the 10^-3 to 10^-9 Torr range through cryocondensation and cryosorption
Configuration and Replacement Notes
The model designation establishes the documented 8F family performance but does not define every configured interface or option.
Match the complete P/N, flange and seal standard, array type, motor orientation and phase, electronics module, gauge, valves, purge arrangement, connectors, and installation/interface drawing before substitution.
Standard, Enhanced, GLE, 300 mm PVD, and On-Board IS 8F products have separate documentation and materially different configuration details; sibling specifications are not interchangeable.
The optional keypad/display and other configurable hardware must not be attributed to P/N 8116021G002R without its label, interface drawing, or manufacturer configuration record.

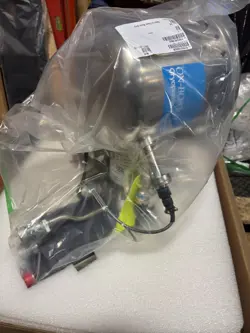

Historical archive images for identification, labels, connectors, and condition reference, not current inventory.
