Brooks Automation TLG-RS232 Inductive TAG System

About this part

N5GTSG is the FCC identifier for a Brooks Automation inductive TAG system used with TLG transponder-reader hardware. Stored Sonisys auction records most often connect N5GTSG with TLG-RS232 / LF80 RS232 reader variants such as TLG-I2-FL6M-01 and TLG-I2-1000-S0-00EB, while one record connects it with a Hermos/Brooks TLG-LON reader. The official FCC-hosted Brooks manual provides the useful technical context: low-frequency inductive tag operation, RS232 reader hardware, passive transponders, antenna options, and SECS-I / SECS-II protocol handling

Configurations vary. Verify the exact unit before choosing a replacement.

Specifications Documents (1)Photos (12)Listing history

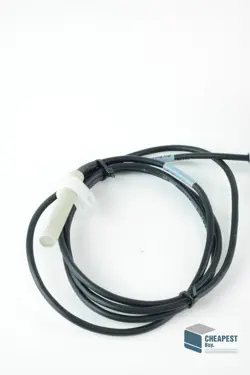

Brooks N5GTSG Brooks-family industrial component auction image

Archived part photo · View gallery

Key Facts

ManufacturerBrooks Automation

Part numberN5GTSG

Product familyConfiguration-specific

Device typeRFID Reader

Configuration statusConfiguration varies

Application classSemiconductor/high-purity gas delivery

CategoryRFID Readers

Specifications

Identification

FCC identifier	N5GTSG
FCC product code	TSG
FCC equipment description	Inductive TAG System
Applicant / grantee	Brooks Automation Inc. and Brooks Automation Germany GmbH RFID Division appear in FCC records for this identifier
Observed reader family	TLG transponder reader hardware, including TLG-RS232 and TLG-LON auction-observed variants

RFID

FCC frequency range	0.134 MHz / 0.1342 MHz low-power transmitter filings are associated with FCC ID N5GTSG
Transponder type	Passive battery-less transponder charged by an energy impulse from the reader antenna
Reading cycle	Less than 100 ms total reading cycle in the Brooks RS232 transponder reader manual
Line-of-sight requirement	Sight connection is not required; the manual states the transponder can be identified through non-metallic material
Antenna options documented	Rod, mini, micro, and frame antenna sections are included in the Brooks RS232 transponder reader manual

Interface

Observed RS232 interface	Stored auction records identify LF80 RS232 and TLG-RS232 reader variants under FCC ID N5GTSG
Documented RS232 connector	9-contact Sub-D female RS232 connector
Documented baud rate range	300 baud to 115200 baud, with 38400 baud documented as the default in the SECS-1 reader parameter table

Protocol

Documented protocol context	SEMI SECS-I / SECS-II message handling is documented for the RS232 transponder reader manual
Documented material functions	Manual message details include cassette found, cassette lost, read MID, write MID, lock MID, read ID, write ID, and subsystem-command functions

Hardware

Documented indicators and controls	Power LED, read LED, tuning LEDs, reset button, tuning pushbutton, and service programming port
Documented external I/O	External output and external input are documented; the input can be used with a sensor such as an optical sensor
Documented fuse	TR5 housing, 500 mA T low-breaking fuse

Compliance

FCC rule part

Part 15C low-power transmitter below 1705 kHz

Configuration

Configured-unit rule

Interface firmware, host protocol, antenna package, cable, OEM part number, and enclosure details vary by physical TLG configuration and installed system

Applications

Application domain

Semiconductor automation, carrier identification, tool automation, load-port RFID, and asset/tag identification workflows

Documentation Downloads

Local PDF copies

Brooks Automation RS232 Transponder Reader User Manual Local PDF download

PDF598 KB

Part Photos

12 images

Historical archive images for identification, labels, connectors, and condition reference, not current inventory.

Historical Listings & Prices

Historical listing data, not a current offer

Archive records16Tracked historical listing records

Historical median price$81.52Based on archived listing records

Recorded price range$74.90 - $150.00Low to high recorded listing price

Local documents1PDF copies available from Sonisys

Recorded price context

The typical recorded price range is $75.53 to $86.65. Based on 16 archived listing records; not a current offer, appraisal, or confirmed sale price.

View archived listing titles

BROOKS FCC ID:N5GTSG TYPE:TLG-RS232 RFID READER LF80 RS232 P/N:TLG-I2-FL6M-01
Brooks TLG-RS232 Transponder Reader ASC-I1 TLG-I2-1000-S0-00EB, FCC ID: N5GTSG
Hermos Brooks TLG-LON N5GTSG Transponder Reader TLG-L1-100-S0-00EB
