IPT122-3000-PSI-VSM identifies a Brooks Instrument IPT122 2-inch indicating pressure transmitter represented in the Sonisys archive by a packaged unit with a 0-3000 psi dial, a VSM face-seal swivel male pressure connection, and a separately marked Type 3 transmitter. Brooks documentation defines Type 3 as a 1-5 VDC ground-referenced output. The official IPT122 ordering table includes a final transmitter-type code after the connection code, while the stored package vendor P/N ends at VSM; confirm the complete configured model, electrical output, cable, and process connection from the physical device labels before replacement or installation
Configurations vary. Verify the exact unit before choosing a replacement.
Application classIndustrial automation and process equipment
CategorySensors and Gauges
Specifications
Identification
Part identifier
IPT122-3000-PSI-VSM
Manufacturer
Brooks Instrument
Product family
IPT122 Series 2-inch stainless steel indicating pressure transmitter
Pressure
Observed range
0-3000 psi on the stored unit dial and package label; 0-3000 is an available IPT122 range in the official range table
Family accuracy
1% of full scale
Family response time
Less than 200 milliseconds
Mechanical
Connection code
VSM denotes a 1/4-inch face-seal swivel male pressure connection in Brooks IPT122 documentation
Family construction
300 Series stainless steel case and movement with 316L stainless steel socket and Bourdon tube
Electrical
Observed transmitter type
The archived unit is labeled Type 3; Brooks IPT122 documentation defines Type 3 as 1-5 VDC ground referenced
Environment
Family ambient operating range
0 to 160 degrees F (-18 to 71 degrees C)
Lifecycle
Manufacturer status
Brooks lists IPS122 and IPT122 pressure switches and transmitters as legacy products
Configuration
Model-code boundary
The official IPT122 model code includes pressure range, units, connection, and a final transmitter-type code. The archived package P/N ends at VSM, so Type 3 is retained as observed unit evidence rather than appended to the exact alias

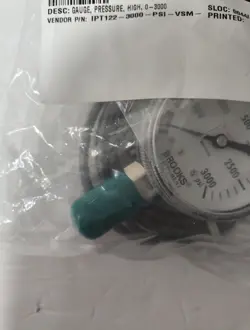

Part Photos
5 images
Historical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offer
Archive records2Tracked historical listing records
Historical median price$70.00Based on archived listing records
Recorded price range$40.00 - $100.00Low to high recorded listing price
Local documents0PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $46.00 to $94.00. Based on 2 archived listing records; not a current offer, appraisal, or confirmed sale price.
