Brooks Instrument SolidSense II Pressure Transducer with Integrated Display
About this part
GID01C3WCSL is a Brooks Instrument SolidSense II pressure transducer configuration with an integrated display. Brooks' official product-description code identifies a dead-end GI model with a 100 psi compound-pressure range, 0.00 to 10.00 Vdc output, W electrical lead configuration, and standard 1.125-inch C-seal surface-mount process connection. A stored exact-unit label shows a 30 in. Hg vacuum-to-100 psig range and 0.00-to-10.00 Vdc output. The trailing L suffix is not defined in the current Brooks model-code table and should be confirmed from the physical label or Brooks support before interchangeability decisions
Configurations vary. Verify the exact unit before choosing a replacement.
The trailing L in GID01C3WCSL is not defined in the current Brooks model-code table; verify its meaning with Brooks Instrument or the complete physical-unit documentation
Pressure
Configured range
100 psi compound-pressure code; the stored exact-unit label reads 30 in. Hg vacuum to 100 psig
Electrical
Output signal
0.00 to 10.00 Vdc
Electrical connection code W
2-inch pigtail with 4-pin AMP connector and 1-inch strain relief at a 20-degree angle from bottom dead center

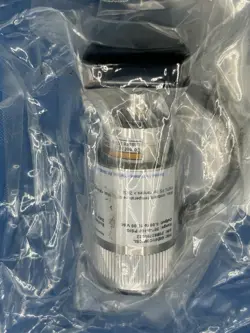

Historical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offer
Archive records4Tracked historical listing records
Historical median price$249.50Based on archived listing records
Recorded price range$144.99 - $1,506.24Low to high recorded listing price
Local documents2PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $161.49 to $1,144.07. Based on 4 archived listing records; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
Lot of 3 Brooks GID01C3WCSL SolidSense Pressure Transducers, 0-100 PSIG,Jp,96931
Lot of 2 Brooks GID01C3WCSL Pressure Transducer SolidSense, 0-100 PSIG,Jp,96939
