GFD01G5DSM
Brooks Instrument SolidSense II GF Series UHP Pressure Transducer
About this part GFD01G5DSM is a configured Brooks Instrument SolidSense II GF Series pressure-transducer identifier used for semiconductor and other high-purity gas pressure measurement. Official Brooks SolidSense II documentation supports the GF/GI family, product-code structure, performance context, and installation requirements. Manufacturer-authored change-notice evidence maps this exact identifier to a 100 PSIG, 0.05 to 5.05 Vdc, dead-end, 15-pin D-sub, 1/4 inch male face-seal configuration. Stored Sonisys auction records match the SolidSense II pressure-transducer identity and are retained only for identity, observed configuration, image, and historical price context
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
Specifications
Documents
Images
Listing history
Aliases
Related
Key Facts
Manufacturer Brooks Instrument
Part number GFD01G5DSM
Product family Configuration-specific
Device type Pressure Sensor
Configuration status Configuration varies
Application class Semiconductor/high-purity gas delivery
Category Flow Control
Specifications
Identification
Device type SolidSense II GF Series ultra-high-purity pressure transducer Configured identifier GFD01G5DSM Manufacturer-authored configured code context GFD01G5DSM is mapped in manufacturer-authored change-notice evidence to GFD-100G-0.05/5.05V-D-SM
Pressure
Observed configured pressure range 100 PSIG context is supported by manufacturer-authored exact-code mapping and by stored exact auction evidence
Output
Observed configured analog output 0.05 to 5.05 Vdc context is supported by manufacturer-authored exact-code mapping and Brooks SolidSense II code documentation
Configuration
Body style Dead-end GF configuration context is indicated by the GFD prefix and exact-code mapping
Connection
Observed configured electrical interface The D option in Brooks SolidSense II code documentation indicates a 15-pin high-density D-sub connector for voltage-output configurations Observed configured process connection The SM suffix in Brooks SolidSense II code documentation indicates a 1/4 inch face-seal swivel male connection
Performance
Family accuracy context Brooks SolidSense II GF/GI data-sheet documentation lists pressure output accuracy as 0.25% full scale
Environmental
Family operating temperature Brooks SolidSense II GF/GI data-sheet documentation lists -29 C to 82 C operating temperature for GF non-display versions
Materials
Family wetted materials Brooks SolidSense II GF/GI data-sheet documentation lists 316L stainless steel wetted parts
Applications
Application domain Semiconductor and other high-purity or ultra-high-purity gas pressure measurement
Documentation Downloads
Local PDF copies

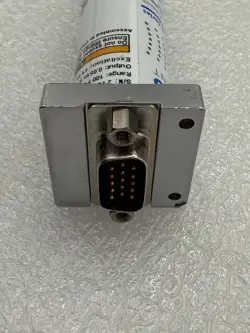

Part Photos
5 images
Historical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offer
Archive records 2 Tracked historical listing records
Historical median price $282.50 Based on archived listing records
Recorded price range $180.00 - $385.00 Low to high recorded listing price
Local documents 2 PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $200.50 to $364.50. Based on 2 archived listing records; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
Brooks Instrument GFD01G5DSM Solid Sense II Series 100 PSIG Pressure Transducer
Parker Veriflo Valve W/ Swagelok PGU-50-P100 & BROOKS GFD01G5DSM SolidSense ASSY
Other Part Numbers & Aliases
GFD01G5DSM Brooks GFD01G5DSM Brooks Instrument GFD01G5DSM
