Pressure And Vacuum
8601DZ05
Brooks Instrument Mechanical Pressure Regulator
About this part
Brooks Instrument 8601DZ05 is a configured identifier based on Model 8601D, the side-connection version of the 8600 Series mechanical pressure regulator. Model 8601 is a compact, direct-acting, non-relieving regulator intended for precise control in low-flow gas service. The Z05 suffix does not follow the currently published ordering-code structure, so the exact body material, diaphragm and valve-seat materials, output range, connections, and mounting options cannot be decoded from current literature. Historical and current Brooks pressure limits differ; the unit nameplate and documentation appropriate to its production era govern safe operation
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
Specifications
| Manufacturer | Brooks Instrument |
| Exact identifier | 8601DZ05 |
| Base model | 8601D — pressure regulator with side connections |
| Series | 8600 Series |
| Operating principle | Direct-acting, non-relieving mechanical supply-pressure regulation |
| Recommended capacity | Up to 1,000 sccm air |
| Helium shutoff | Bubble-tight shutoff at 100 psi supply pressure |
| Drift | Less than 1% during the first 15 minutes and no more than 1.5% total long-term drift under the documented typical conditions |
| Mounting capability | Line or panel mounting |
| Published process connections | Standard 1/8-inch NPT; published options include 1/4-inch NPT, 1/8- or 1/4-inch compression fittings, and 1/4-inch-ID hose adapters |
| Body materials | Aluminum or 316 stainless steel, depending on configuration |
| Internal filter | Replaceable 40-micron sintered 316L stainless-steel element with Buna-N or Viton fluoroelastomer retainer sleeve |
Published ordering-code boundary
The current Brooks ordering code begins with 8601D and then uses five defined option positions. The suffix Z05 does not supply those positions, and Z is not a published body-material code. Only the 8601D base-model portion can therefore be decoded conservatively.
| Position | Published codes | Meaning |
|---|---|---|
| Base model | 8601D | Pressure regulator with side connections |
| Body material | 1 or 2 | Aluminum or stainless steel |
| Diaphragm and valve-seat materials | A, B, C, or D | Published Buna-N, Viton, brass, and stainless-steel combinations |
| Output range | 1 through 5 | Current ranges from 0–10 through 0–150 psi |
| Connection | A or B | 1/8-inch or 1/4-inch NPT female |
| Accessory | A, B, or F | None, panel mounting, or plugged gauge port |
Pressure-rating revision boundary
Brooks documentation changed materially over the Model 8601 product life. The exact unit must be operated according to its nameplate and the documentation applicable to its production revision.
Model 8601 service parts
The Brooks installation and operation manual identifies the following field-replaceable filter components and installation tool. The manual discourages other field disassembly and warns against cleaning the regulator by flushing it with solvent or air.
| Description | Brooks part number |
|---|---|
| 40-micron filter element | 306Z223BNA |
| Buna-N filter retainer | 715Z224SUA |
| Viton-A filter retainer | 715Z224QTA |
| Filter installation tool | 908-Z-060-EAA |
Documentation Downloads
Local PDF copiesPart Photos

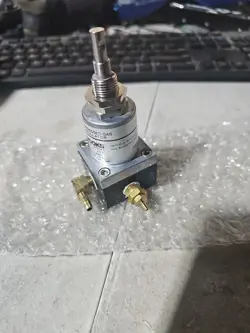

8 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offerThe typical recorded price range is $199.99 to $199.99. Based on 2 archived listing records; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
- BROOKS INSTRUMENT 8601DZ05 250PSI Compressed gas regulator. #w26
- Compressed Gas Regulator BROOKS INSTRUMENT 8601DZ05 250PSI FAST SHIPPING! #S69
