Brooks Instrument 1350EFC3BGV5A / 8900D2K1A1AC Sho-Rate 1350E Variable Area Flowmeter with FC8900 Controller Context
About this part
1350EFC3BGV5A8900D2K1A1AC is an exact configured Brooks Instrument record presented in listing evidence as 1350EFC3BGV5A 8900D2K1A1AC. Official Brooks documentation supports the 1350E as a Sho-Rate 50 glass-tube variable-area flowmeter family and supports 1350E-8900 configurations with a controller on the outlet; exact scale, tube, float, material, seal, connection, and service details should be verified from the physical unit label and scale
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
ManufacturerBrooks Instrument
Part number1350EFC3BGV5A8900D2K1A1AC
Product familyConfiguration-specific
Device typeFlowmeter
Configuration statusConfiguration varies
Application classIndustrial automation and process equipment
CategoryFlow Control
Specifications
Identification
| Device type | Glass tube variable-area flowmeter / rotameter with configured flow-controller context |
| Series family | Brooks Sho-Rate 1350E / 1355E family |
| 1350E family name | Sho-Rate 50 |
| Configured model code | 1350EFC3BGV5A8900D2K1A1AC |
| Observed component-code form | Stored Sonisys and reseller evidence present the exact configured record as 1350EFC3BGV5A 8900D2K1A1AC |
Function
| Measuring principle | Variable-area flow indication using a tapered borosilicate glass metering tube and metering float |
Scale
| 1350 series scale length | Brooks 1350E/1355E documentation lists the 1350 Series scale length as 65 mm nominal |
| Scale options | Brooks 1350E/1355E documentation lists standard R-65 mm or R-100 linear reference scale options with air or water calibration table, depending on configuration |
Performance
| 1350 Series accuracy context | Brooks 1350E/1355E documentation lists 1350 Series standard accuracy as +/-10% of full scale |
| Repeatability context | Brooks 1350E/1355E documentation lists repeatability as 0.5% full scale |
Pressure and temperature
| Flowmeter family rating context | Brooks 1350E/1355E documentation lists 200 psig from 33 F to 250 F / 1 C to 121 C, and 170 psig over the same temperature range when supplied under CRN certification |
Construction
| Metering tube material | Borosilicate glass |
| Float material options | Glass, 316 stainless steel, sapphire, Carboloy, and tantalum |
| End fitting material options | Chrome plated brass, black anodized aluminum, and 316 stainless steel |
Connections
| Standard 1350E family connection | Brooks 1350E/1355E documentation lists horizontal female 1/8 inch NPT threaded adapters with locknuts for front-panel mounting as the standard connection |
| Optional connection context | Brooks 1350E/1355E documentation lists optional 1/8 inch and 1/4 inch compression fittings, 1/4 inch female NPT connections, and 1/4 inch ID serrated hose connections |
Controls
| Integral control options | Brooks 1350E/1355E documentation supports standard integral flow control valves, NRS integral flow control valves, and integral flow-controller configurations on the inlet or outlet |
| 1350E-8900 context | Brooks 1350E/1355E documentation depicts Model 1350E-8900 as a Sho-Rate 50 configuration with the controller on the outlet |
Flow controller
| FC 8900 role | Brooks FC documentation identifies Series FC 8900 controllers as liquid and gas flow controllers for variable downstream pressure service |
| Controller operating principle | Brooks FC documentation describes maintaining a fixed differential pressure across an integral manual flow regulating valve using an internal diaphragm-actuated control valve |
Installation
| Orientation | Brooks 1350E/1355E installation guidance calls for installation within 6 degrees of true vertical with the inlet connection at the bottom end fitting |
Configuration
| Configured-unit rule | Tube and float code, direct-reading scale, service fluid, flow range, controller details, connection, seals, end-fitting material, side-plate material, and pressure certification vary by configured unit and should be verified from the physical label, scale, and markings |
Observed variants
| Stored auction and reseller context | Stored Sonisys and reseller evidence identifies this exact spaced code as a Brooks Instrument flow meter with 1-10 SCFH and 1/4 inch NPT wording; this is observed configuration context, not an official model-wide specification |
Applications
| Application domain | Low-flow gas and liquid indication, purge flow service, panel-mounted rotameter applications, and configured local flow-control assemblies |
Documentation Downloads

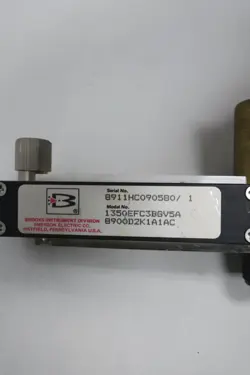

Local PDF copiesPart Photos
5 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offerArchive records2Tracked historical listing records
Historical median price$95.47Based on archived listing records
Recorded price range$84.93 - $106.00Low to high recorded listing price
Local documents3PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $87.04 to $103.89. Based on 2 archived listing records; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
- Brooks Instrument 1350EFC3BGV5A 8900D2K1A1AC Flow Meter 1-10scfh 1/4in Npt
Archived listings
Other Part Numbers & Aliases
1350EFC3BGV5A8900D2K1A1AC1350EFC3BGV5A 8900D2K1A1AC
